AR500

Product Description

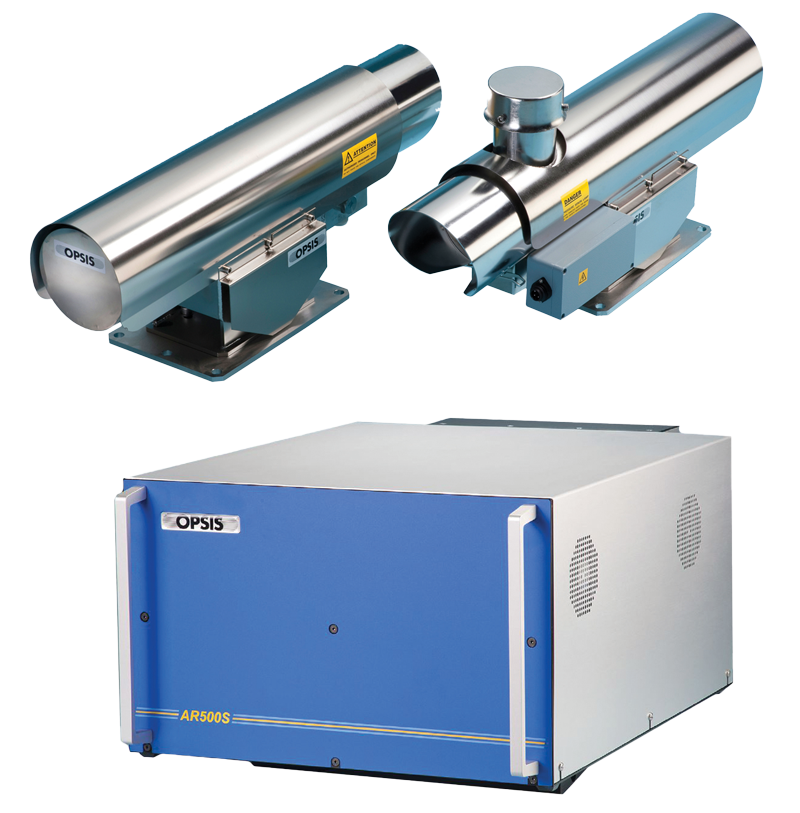

Air quality monitoring with Fence-Line

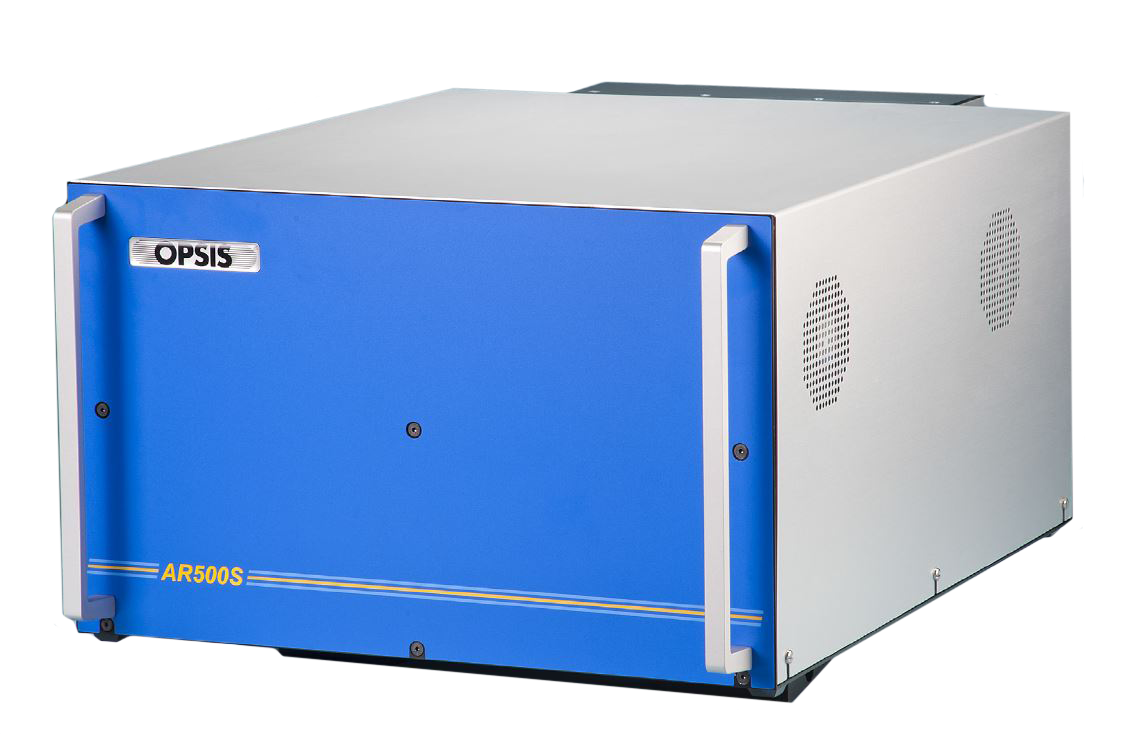

The OPSIS AR500 Analyser is the central unit of an OPSIS ambient air quality monitoring system. It receives light from one or more light paths via a fibre optic cable and provides data for presentation through OPSIS software. The analyser has a high-performance spectrometer. Here, received light is converted into digital signals and analysed by the built-in computer. The computer software includes the spectrographic ‘fingerprints’ of a number of user-specified compounds. Using Beer Lambert’s Law, it detects and measures these compounds through the depletions they cause in the spectrum of received light.The system refines results by calculating margins of error for each value and by noting the proportion of transmitted light received by the analyser. This allows both data and system verification. OPSIS is a fully modular system which may be updated or expanded at any time. An OPSIS analyser includes interfaces for a multiplexer (for multiple light paths) and for a data logger (when integrating external signals from e.g. meteorological sensors) as standard. Furthermore, it is prepared for the addition of automatic calibration equipment. Communication ports are available for data transfer via modem, LAN or Internet, using optional communication devices. Updating an OPSIS system to monitor additional gases often only involves a simple software upgrade.

Data Service:

Accessing monitoring data easily and securely can be challenging. Configuring and running a computer network for this purpose with servers, switches, firewalls, authentication, backups, updates, etc. can be both complicated and expensive.

OPSIS Data Services (ODS) saves you all these worries. OPSIS takes care of everything related to the IT infrastructure of your internet connection. You only need a computer or other device with its own internet connection and a browser to have your data in front of you, if necessary in near real time.

Features:

• Subscription service - all costs are known from the start
• Data collection and storage on ODS servers hosted by OPSIS
• Flexible access to the data with several presentation options
• Compliance with the information security standard ISO 27001
• Alarm functions
• Calculation options
• Automatic data validation
• Data export functions

Monitoring Service:

Ownership and Operating air quality monitoring stations or measuring devices for industrial applications can be complex and requires resources, expertise and equipment to ensure the accuracy of the monitoring data. OPSIS offers a reliable end-to-end solution that ensures high quality and high availability of the measurement data - the OPSIS Monitoring Services (OMS).

The OPSIS Monitoring Services work like a subscription. As a customer, you can focus on the data. We install the systems based on years of experience and according to the requirements and specifications of your organization and we deliver quality assured and validated measurement data 24 hours a day, every day of the year.

The employees who operate the OPSIS Monitoring Services are highly qualified and experienced in managing air quality, process and emissions monitoring systems. All this knowledge and experience is included in OPSIS Monitoring Services.

This can be included in OPSIS Monitoring Services:

• Setup, operation, maintenance, calibration, repairs if necessary and decommissioning at a fixed price
• all possible spare parts
• no unforeseen costs
• accredited calibration according to ISO/IEC 17025 available
• guaranteed data availability, typically >90%
• reporting services
• access to OPSIS' extensive knowledge and years of experience
• all monitoring data available via OPSIS Data Services (ODS)

Documentation

• Datasheet AR500
