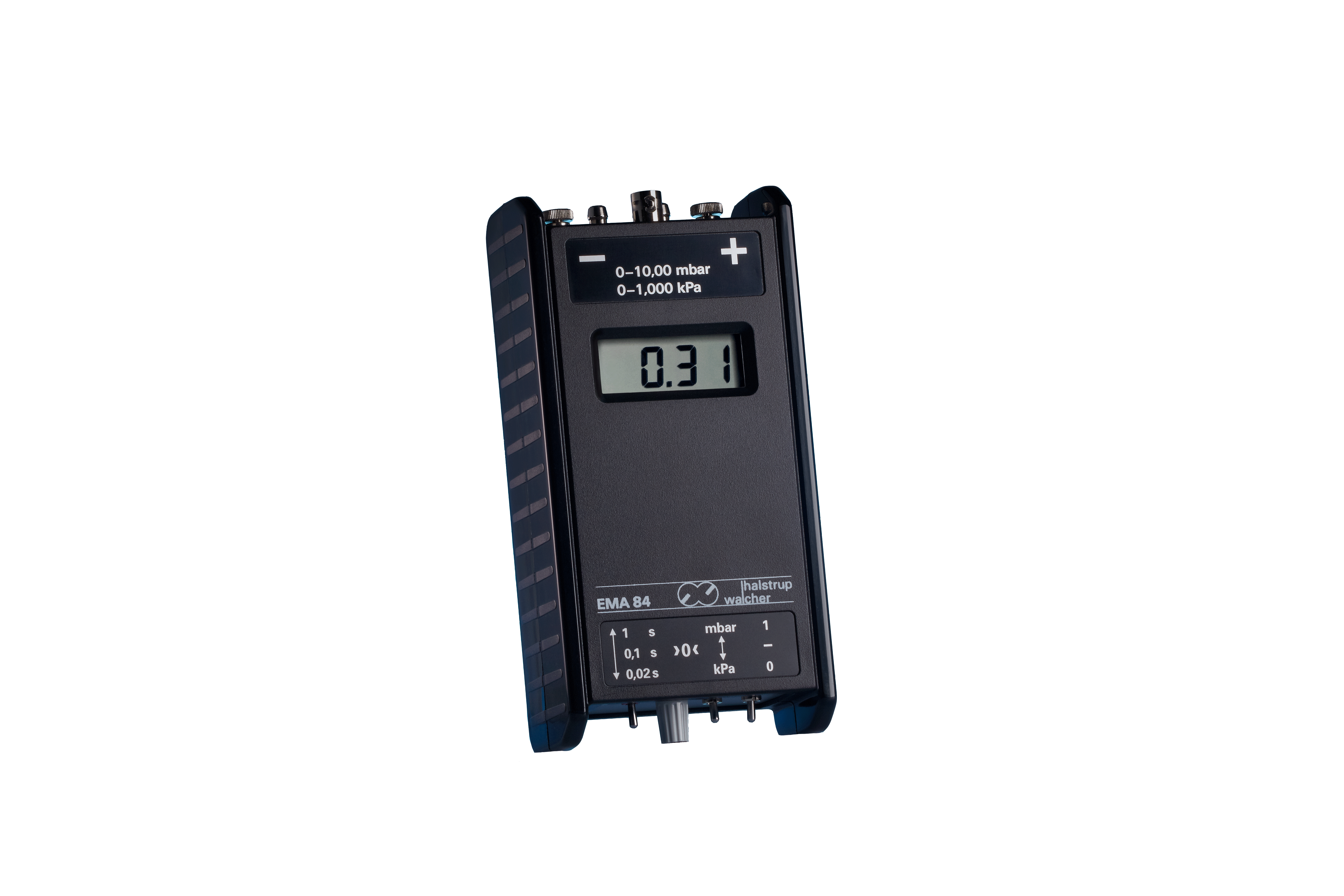

EMA84 Portable digital pressure gauge

Product Description

Portable digital pressure gauge providing highly accuratemeasurements in a robust housing

Special features

  • High level of accuracy and long-term stability
  • Little zero point drift or hysteresis; largely independent oftemperature
  • Available for 4 measuring ranges
  • Analogue output (optional)
  • Toggle on/off time constants for attenuating the display duringpressure fluctuations
  • Can be calibrated

The EMA 84 is a portable, battery-powered digital pressure gaugeproviding highly accurate measurements

of positive and negative differential pressures. Because it isdurable and easy-to-use, the EMA 84 lends

itself well to maintenance work and customer serviceapplications for heating, air-conditioning and

ventilation units, where it can be used for monitoring filters,measuring fireplace drafts, etc. Its precision

and reproducibility also make the EMA 84 is highly suitable foruse in laboratory applications.

Technical Specification

Measurement ranges
0 .. 100 Pa (0 .. 1 mbar)
0 .. 1 kPa (0 .. 10 mbar)
0 .. 10 kPa (0 .. 100 mbar)
0 .. 100 kPa (0 .. 1000 mbar)

Margin of error
± 0.2 % of max. value (only for measurement ranges 1 .. 50 kPa, min. 0.3 Pa),
± 0.5 % of max. value (only for measurement ranges 1 .. 100 kPa),
± 1 % of max. value

Output signal
0 .. 1 V (optional)
