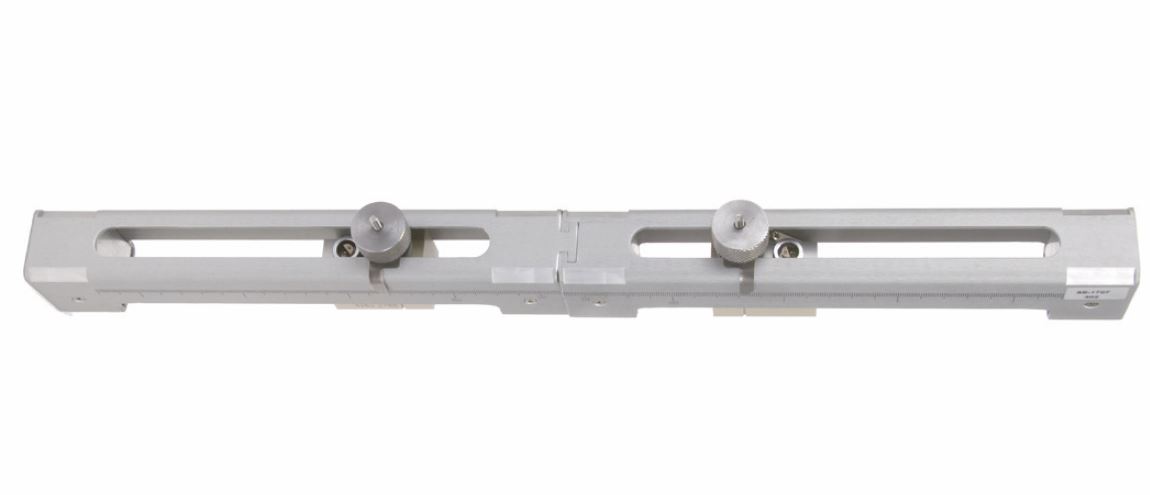

External Probe KIT-SE-1595
Product Description
These probe is non-intrusive, which means that it can be used to take measurements without requiring shut-down or holes to be drilled into the pipes.
- Set of 2 probes with their support
- External probes for liquid flow measurement on a full pipe .
- Standard applications - clear liquids and pipes
- Mounting on a pipe from DN100 to DN2500
- Maximum operating temperature of +80°C
- Push-Pull connection
Technical Specification
| Pipe diameter | From 100 up to 2500 mm |
| Temperature range | -20°C to +80°C |
| Connectic | Push-pull / Gland connector |
| Frequency | 500 KHz |
| Ingress protection | Type IP 67 / IP68 |
| Dedicated support | SU-1735, SU-1629 |
| ATEX version | Available (with gland connector only) |
