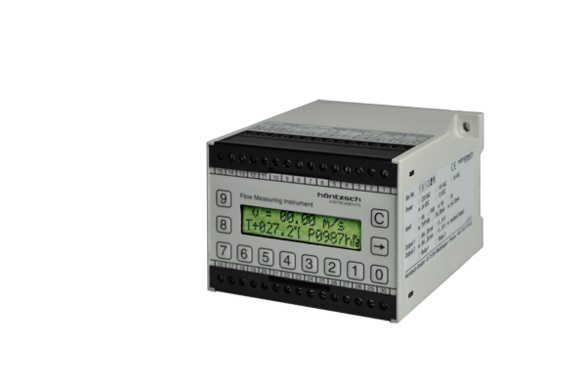

System unit µP-Vortex in top-hat rail mounting
Product Description
System unit µP-Vortex in top-hat rail mounting:
For connection with probes VA40 and measuring tubes VA Di. Conversion of actual to standard flow / flow rate (optional). For ATEX category 1G (zone 0) applications, an additional isolation / supply unit LDX2 is necessary. With flow-proportional analog output 4-20 mA, relay for use as limit value, quantity pulse or direction reading.
Power supply 24 VDC.
With keypay and display.
Configurable via keypad.
Technical Specification
Features for System unit µP-Vortex in top-hat rail mounting:
- Displayed indicators: actual flow velocity [m/s], actual flow rate [m³/h], quantity [m³]
- IP protection type: IP20
- Sensor input: v/VA
- Sensor output: analog output flow 4 ... 20 mA or 0 ... 10 V flow-proportional, relay for direction, limit value or quantity pulse
