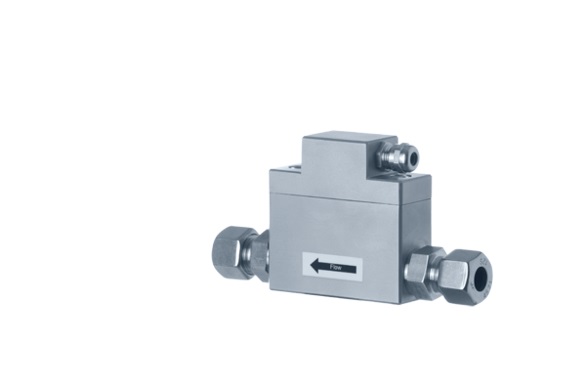

Thermal Measuring Tube TADI-SAW - for separate evaluation unit
Product Description
Thermal Measuring Tube TADI-SAW - for separate evaluation unit
Measuring tube TA Di with inside diameter 8, 16, 21.6, 27.2, 35.9 and 41.8 mm. For connection to separate evaluation units like e.g. U10b, flowtherm NT or flowtherm Ex.
Material: stainless steel.
Suitable for fixed measuring of standard flow rate NV/t [m³/h], mass flow rate [kg/h], standard volume NV [m³] and standard flow velocity Nv [m/s] in clean, condensate and particle-free gases.
Technical Specification
Features for Thermal Measuring Tube TADI-SAW - for separate evaluation unit:
- Measuring range: 0.6 ... 12.350 l/min or 0.04 ... 741 m³/h
- Pressure resistance: up to 16 bar / 1.6 MPa
- Media temperature: -10 ... +140 °C
- Media: air, (compressed air), nitrogen, oxygen, methane, natural gas, argon, hydrogen, propane, butane, carbon dioxide, helium, sulphur hexafluoride
- IP protection type: IP65 (cable side)
- Type of protection: with U10b: ATEX category 3G and 3D (zone 2 and 22) (optional); with flowtherm Ex: ATEX category 2G (zone 1) (optional)
- Sensor output: analog output 4 ... 20 mA flow proportional, relay for quantity pulse, RS232 interface
