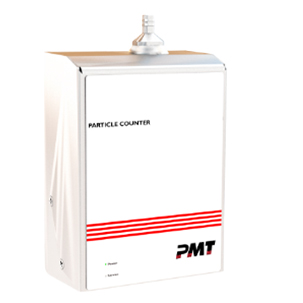

Particle counter 9501P PoE
Product Description
The 9501P PoE particle counter offers a particle size measurement range of 0.5 to 25.0 μm at a flow rate of 0.1 CFM (2.83 LPM). These sensors provide efficient particle counting with specifications that exceed ISO 21501-4 and JIS B9921 calibration standards.
These sensors have 6 user-selectable particle size channels (optionally up to 30 channels) and are equipped with an internal pump and manifold and do not require an external vacuum source. Integration into a building automation or plant monitoring system is simple via MODBUS TCP/IP over RJ45, Power over Ethernet or WiFi (802.11 b/g).
Technical Specification
- 9501P: 0.5 µm to 25 µm
- 0.1 CFM (2.83 LPM)
- Long-life laser diode technology
- Measures up to 30 channels of simultaneous data
- Accurate in high particle concentration environments
- Internal vacuum pump
- Internal HEPA filter
- User selectable channel sizes
- Stores up to 65,000 sample records for data redundancy
- (Optional) Temperature and relative humidity sensor available
- Connection via MODBUS™ TCP/IP over Ethernet or WiFi (802.11 b/g)
- Complies with ISO 21501-4 and JIS B9921 standards
- Alarm light
- LED indicators
- Seamless integration into a building monitoring system
- Lightweight stainless steel housing
- 5 year guarantee
