Product Description

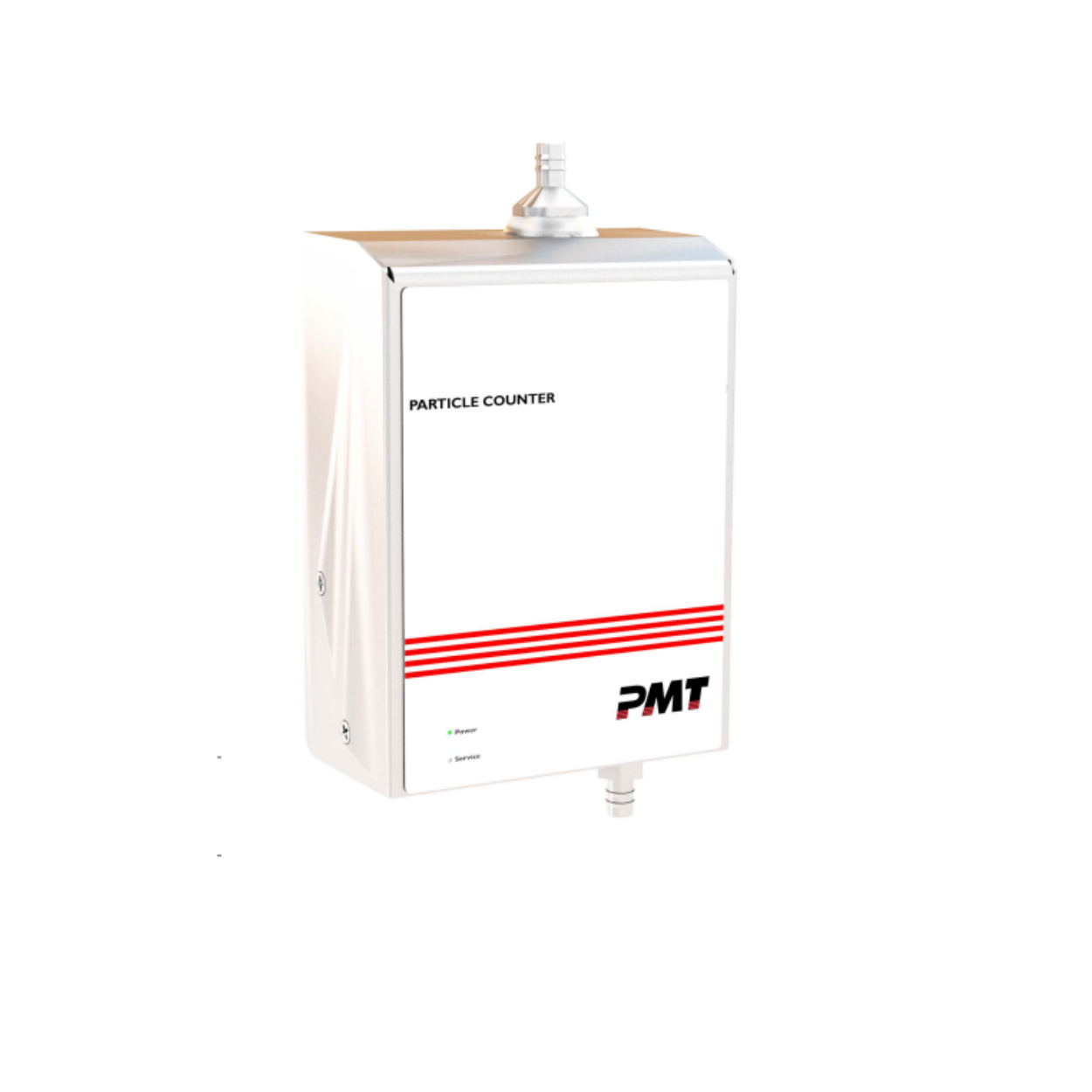

The 9301 PoE Particle Counter provides a particle size measurement range of 0.3 to 25.0 μm at a flow rate of 0.1 CFM (2.83 LPM). These sensors enable efficient particle counting with specifications that exceed ISO 21501-4 and JIS B9921 calibration standards.
These sensors have 6 user-selectable particle size channels (optionally up to 30 channels) and are equipped with an integrated critical orifice and flow sensor to ensure a stable flow rate from an external vacuum source. Integration into a building automation or facility monitoring system is easy via MODBUS TCP/IP over RJ45, Power over Ethernet or WiFi (802.11 b/g).
Technical Specification
- 9301: 0.3μm to 25μm
- 9501: 0.5μm to 25μm
- 0.1CFM(2.83LPM)
- Long-lasting laser diode technology
- Measures up to 30 channels with simultaneous data
- Particle concentrations up to 10,000,000 particles/ft3 with 10% coincidence loss
- Internal critical nozzle
- User-selectable channel sizes
- Stores up to 65,000 sample records for data redundancy
- (Optional)Temperature and relative humidity sensor available
- Connection via MODBUST MTCP/IP via Ethernet or WiFi (802.11b/g)
- Complies with ISO21501-4 and JISB9921 standards
- Alarm light
- LED indicators
- Seamless integration into a building monitoring system
- Lightweight housing made of stainless steel
