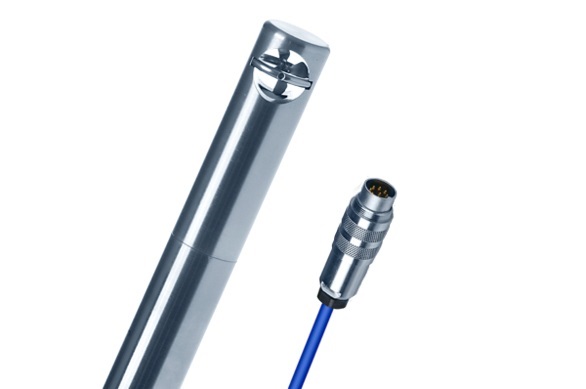

Probe ZSR25 ... ZG1/ZG2 - with +/- direction sensing - with connection cable
Product Description
Probe ZSR25 ZG1ZG2:
Cylindrical vane wheel sensor / insertion probe with probe diameter 25 mm and +/- direction sensing. Probe materials: aluminium, stainless steel or titanium. Working temperature range up to +240 °C. Suitable for fixed measuring of actual flow velocity v [m/s] and flow rate V/t [m³/h, l/min] in clean gases and liquids, briefly also in particle-laden mediums. They are extendable and therefore practical for applications in free or pipe flows, where the +/- flow direction is to be measured as well. We recommend our TSR probes for aerodynamic analysis in free flows, where the direction of flow is unknown. Signal evaluation with handheld flowtherm NT, flowtherm Ex, transducer UFA and system units.
Technical Specification
Features for Probe ZSR25 ZG1ZG2:
- Measuring range: 0.4 ... 120 m/s in air/gases; 0.04 ... 10 m/s in water/liquids
- Pressure resistance: up to 6 bar / 600 kPa overpressure
- Media temperature: -40 ... +260 °C
- Media: gases / liquids
- IP protection type: IP65 (cable side)
- Type of protection: ATEX category 2G (zone 1), (optional)
- Sensor output: v/FA, v/FAR
