Flexible ultrasonic flowmeter
Product Description
COMPACT. POWERFUL. COMPLEX.

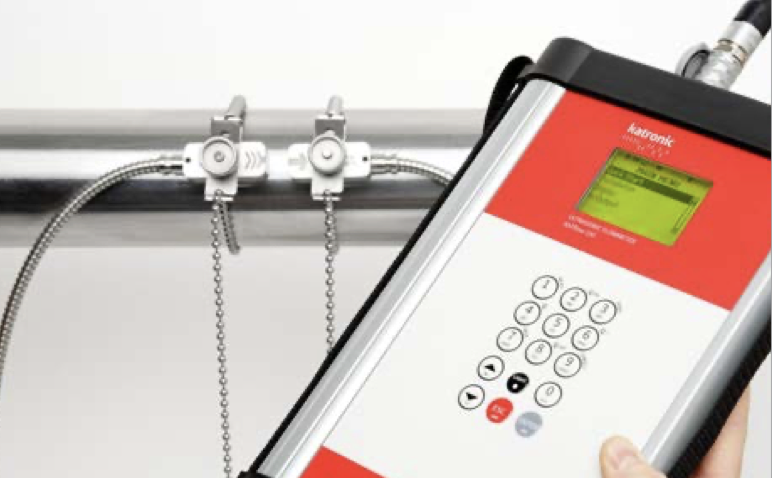

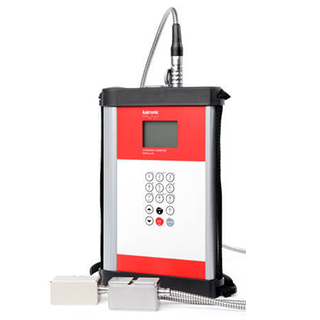

With advanced technical features, the KATflow 230 is suitable for applications that require extensive measurement options and high mobility. The flow meter has two measuring channels, which can either be used to monitor two pipelines at the same time or to guarantee the measurement accuracy even under more difficult conditions. Due to its flexibility, it gives the user a variety of options to meet a wide range of requirements.
The selection of different process outputs such as current, relay and open collector allow, for example, the KATflow 230 to be used as a temporary replacement device for built-in flow meters when they need to be recalibrated. In addition, the integrated PT100 inputs offer the option of outputting temperature-compensated flow rates or carrying out complete energy measurements. This function can be expanded even further by using the expansion module for additional process inputs and outputs, for example to carry out two-channel heat quantity measurements or to obtain alternative output options such as Modbus.
- Numerous input and output options for additional flexibility
- PT100 inputs for heat quantity measurement
- Internal measured value memory for up to 100,000 measured values and software for data evaluation

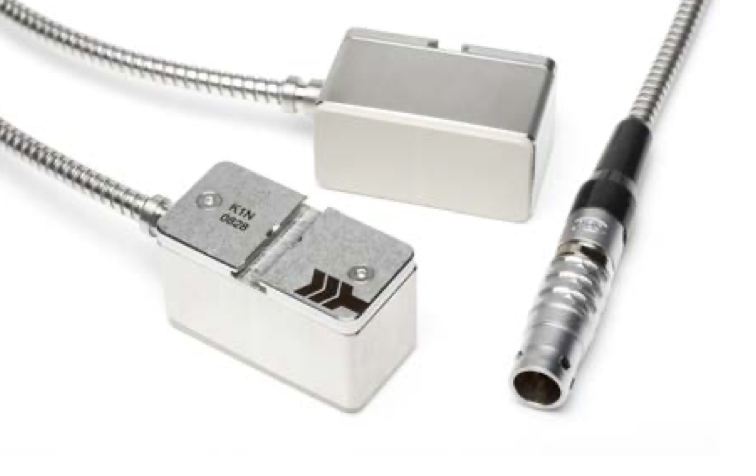

- High-quality stainless steel sensors, cable material and plug connections

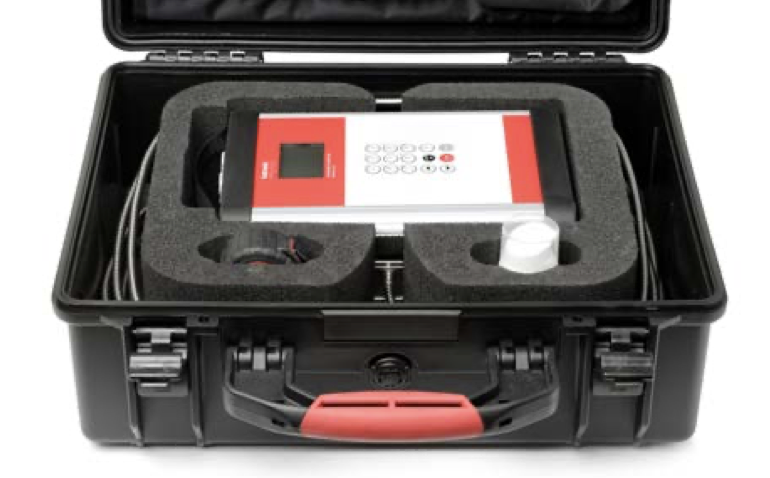

- Three different transport cases to choose from including a special IP 67 version
- Wall thickness measurement sensor available for standard and high temperature applications
Technical Specification
- Pipe diameters from 10 mm to 6,500 mm
- Temperature range for standard sensors from -30 °C to +250 °C
- Robust IP 65 aluminum housing
- Graphic display with selectable “three-line display” and one-handed keyboard
- Battery life in measuring mode up to 24 hours with 8 x NiMH AA batteries
- Dual flow monitoring with calculation functions sum, difference, average and maximum value
