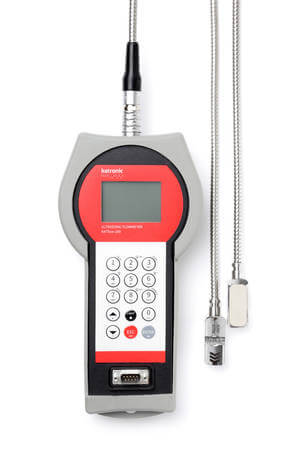

KATflow 200 Handlicher Ultraschalldurchflussmesser
Product Description
SIMPLY. EFFICIENT. ENERGY.

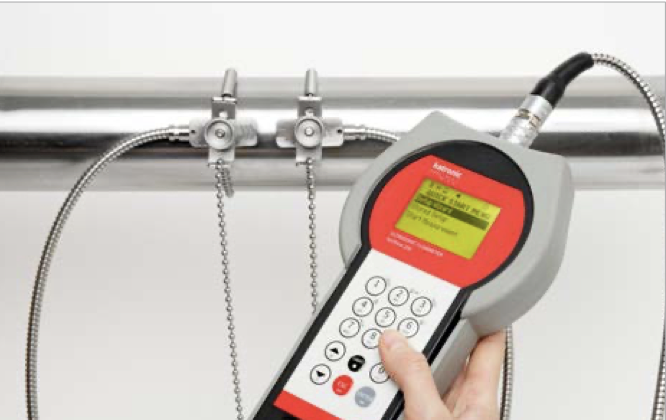

The KATflow 200 impresses with its handy size. The portable, lightweight device can be handled intuitively and operated with one hand, making it the ideal companion for use in hard-to-reach areas or where space is limited. The flow meter also offers a range of performance that was previously only known from significantly more expensive devices. The KATflow 200 is completed by the high-quality and robust Katronic clamp-on sensors.
The KATflow 200 handheld device is equipped with a number of features that make the versatile instrument unique for a flow meter of its size and price range. For example, you can choose between different stainless steel sensors that cover a temperature range from -30 °C to +250 °C. In addition, the KATflow 200 can be used without restrictions for up to 24 hours thanks to the practical use of commercially available NiMH AA batteries. The ultrasonic flow meter has a large internal measured value memory and is available in three different transport cases and optionally with a wall thickness sensor depending on customer needs.
- Lightweight handheld device for practical one-handed operation

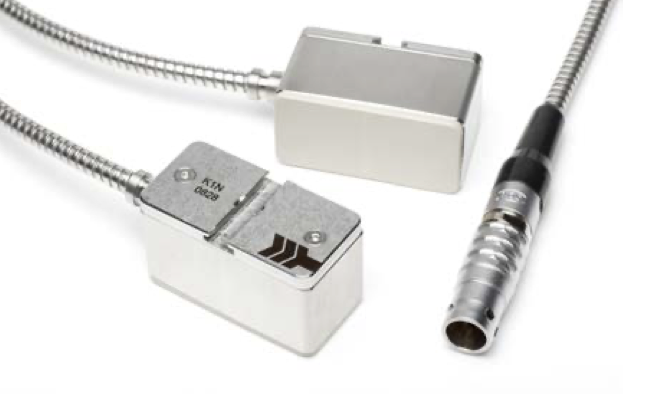

- High-quality stainless steel sensors, cable material and plug connections
- Innovative installation assistant for user-friendly commissioning
- Extensive diagnostic options and oscilloscope function
- Internal measured value memory for up to 100,000 measured values and software for data evaluation
- Wall thickness measurement sensor available for standard and high temperature applications
Technical Specification
- Pipe diameters from 10 mm to 6,500 mm
- Temperature range for standard sensors from -30 °C to +250 °C
- Weight 650g
- Robust IP 65 housing with rubber protector
- Graphic display with selectable “three-line display” and one-handed keyboard
- Battery life in measuring mode up to 24 hours with 4 x NiMH AA batteries
