Compact ultrasonic flowmeter
Product Description
SOLID. STABLE. DURABLE.

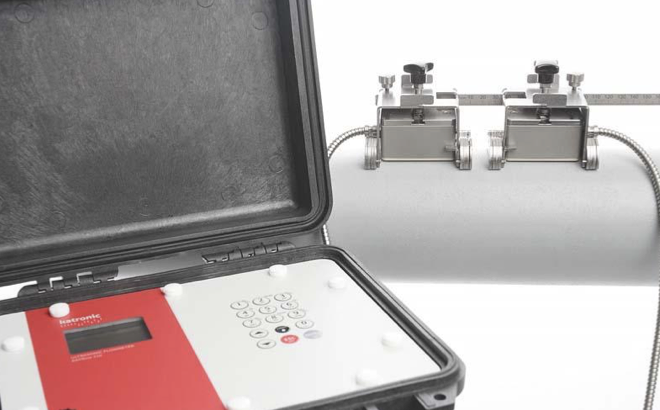

For applications that require a durable flowmeter that is not only waterproof but also portable, the KATflow 210 is the perfect solution. With its high battery power, the KATflow 210 can be used for long-term installations in remote or difficult-to-access areas without access to external power supply. Designed specifically for the water and wastewater industry, it withstands even poor climatic conditions and flooding, offering the optimal balance of reliability, autonomy and resilience.

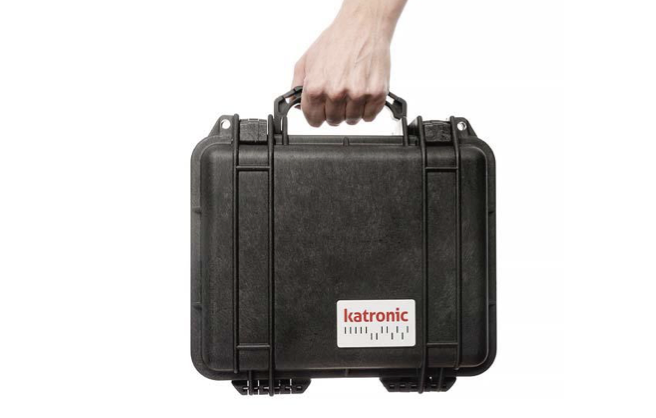

The housing of the KATflow 210 has a protection level of IP 67 and also functions as a robust transport case. Thanks to the advanced battery technology, the non-invasive flow meter can be used for up to a hundred days with a short charging time and can be easily installed in trenches and shafts together with its shock-resistant IP 68 ultrasonic sensors. According to the customer's requirements, the KATflow 210 is supplied with various process outputs and can also be equipped with the option of wireless data transfer.
- Flow meter and transport case in one compact device
- Three different operating modes to maximize battery life
- Internal measured value memory for up to 100,000 measured values and software for data evaluation

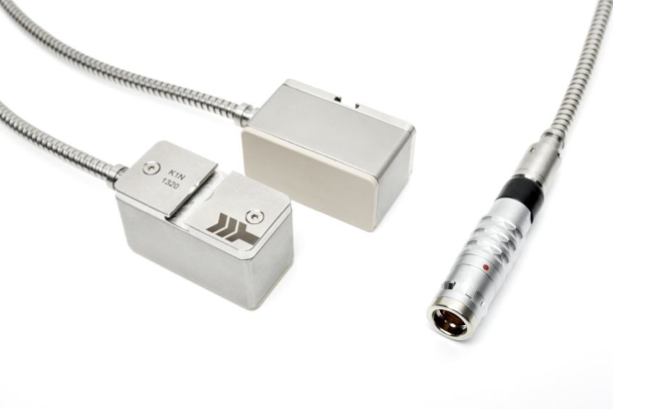

- High-quality IP 68 stainless steel sensors, cable material and plug connections
- Process output options including power, open collector, relay
- Wireless data transmission possible
Technical Specification
- Pipe diameters from 10 mm to 2,500 mm
- Temperature range for standard sensors from -30 °C to +130 °C
- Robust and compact IP 67 housing
- Graphic display with selectable “three-line display” and one-handed keyboard
- Operating time up to 100 days, longer in energy saving mode
- Sensor available for wall thickness measurement
